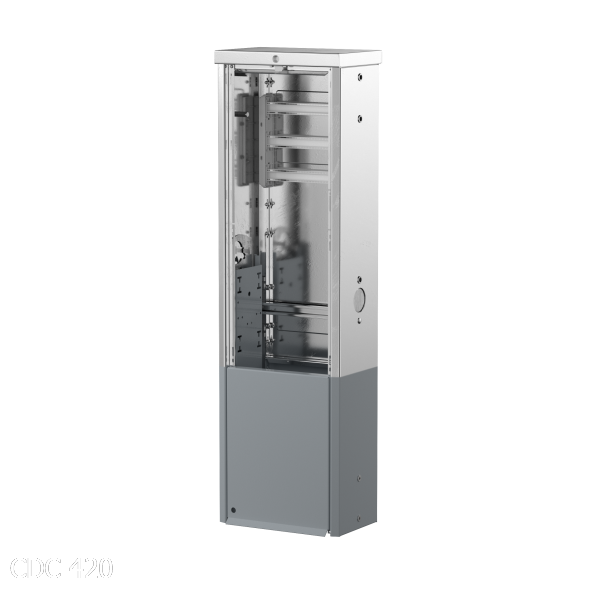

NordiconAmp's outdoor distribution panels are fully integrated distribution systems that are widely used in Scandinavia, with annual sales of approximately 50,000 units. The system is designed and certified in accordance with the international standard IEC 61439-5. This standard sets requirements for the complete installation and verifies, among other things, electrical safety, temperature rise, short-circuit resistance, mechanical strength, and operational reliability.
An important advantage of this concept is that the main power distribution is located outside the building. As a result, an existing main distribution panel can often be reduced to a sub-distribution panel for the internal installation. Power expansions take place in the outdoor cabinet, meaning that costly and extensive modifications to the existing indoor installation are usually not necessary.
In addition, this solution contributes to increased safety by keeping high power levels and short-circuit levels outside the building. The thermal performance is also favorable: the busbars are not enclosed in compact plastic housings, allowing for better heat dissipation and limiting temperature rises.
This offers additional benefits in the context of the energy transition, where the demand for power is increasing significantly due to charging infrastructure, heat pumps, and battery storage. The system thus constitutes a safe, scalable, and future-proof solution for grid reinforcement and further electrification.
The Kabeldon busbars form the core of the distribution system and are available from 400 A to 2500 A. Thanks to their modular design and IP2X protection, they offer a safe, compact, and flexible solution for a wide range of applications.
Our range of modular fuse holders offers a complete solution for blade fuses from 10 A up to and including 630 A. Thanks to the smart, modular design, the holders are quick and easy to mount on busbars, saving installation time and offering flexibility for expansions.
Kabeldon switches and fuse switch disconnectors are designed for safe operation and reliable performance. The range supports both industrial and public installations and offers solutions from 12 A to 2000 A.
The integrated measuring units support accurate energy measurement and monitoring. Thanks to the compact integration into the system, current transformers and measuring components can be easily added without loss of additional space.
Cable connectors offer reliable and secure connections for various applications. They are designed for easy installation and maintenance, and support both industrial and public installations.
In addition to standard components, Kabeldon also offers special solutions such as integrated foundations, smart ventilation systems, and compact distribution cabinets designed for specific applications and environments.
ABB also offers a range of circuit breakers suitable for various power levels. These breakers are designed for easy installation in our miniature circuit breakers and offer reliable protection against overcurrent.
NordiconAmp offers other products for every unique requirement, designed for maximum protection and durability in demanding environments. We offer a safe housing for electrical components and are suitable for both indoor and outdoor use.
NordiconAmp offers a wide range of energy distribution solutions that can be fully tailored to the customer's wishes and requirements. Thanks to the modular design, the systems are easy to configure and expand for both new installations and existing infrastructures. A key advantage of NordiconAmp is the extensive integration capability of additional energy systems. For instance, emergency power generators, battery storage systems, and grid takeover facilities, among others, can be seamlessly integrated. The use of an ATS (Automatic Transfer Switch) or STS (Static Transfer Switch) is also possible, enabling a reliable and virtually uninterrupted energy supply.
With this, NordiconAmp offers a future-proof solution for locations where business continuity, availability, and flexibility are of crucial importance, such as data centers, healthcare facilities, industrial installations, utility buildings, and critical infrastructure. The combination of high-quality components, smart integration capabilities, and a scalable structure creates a robust energy system that is ready for the challenges of the energy transition and the growing demand for electrical power. NordiconAmp thus delivers not only a distribution system, but a complete platform for reliable and sustainable energy supply.
Reliable and future-proof energy distribution for residential areas and apartment complexes. Thanks to the compact design, high safety, and sustainable construction, the system is easy to integrate into public spaces.
Ideal for current and future energy needs, including charging infrastructure, heat pumps, and further electrification of residential environments.
Developed for demanding environments such as industrial installations, utility buildings, logistics centers, and commercial complexes.
The solution combines maximum operational reliability, safety, and flexibility, and offers the scalability needed to grow with future power and energy needs.
• electrical safety • temperature rise (heat generation) • short-circuit resistance • insulation properties • mechanical strength • protection rating (IP) • operational reliability under real-world conditions
NordiconAmp levert elektrotechnische verdeelkasten en gerelateerde systeemoplossingen in samenwerking met Kabeldon en ABB.
